Dell UltraSharp 4K Monitore mit 24 und 32 Zoll ab 1.399 Dollar – Kein HDMI 2.0

Bereits im Juli dieses Jahres hat Dell einen Prototypen des UltraSharp 32 UHD 4K Monitor (UP3214Q) auf der Siggraph Conference präsentiert. Jetzt gibt Dell bekannt, dass neben dem 32 Zöller mit IGZO Display auch eine 24 Zoll Version (UP2414Q) in den Handel kommen wird. Ein drittes, 28 Zoll Modell soll im Frühjahr 2014 für unter 1.000 Dollar US folgen.

24 Zoll UP2414Q ohne IGZO Display

Beide Ultra HD Bildschirme sind bereits auf der amerikanischen Dell-Seite gelistet. Eine Listung auf dell.de steht noch aus. Neben der unterschiedlichen Displaygröße, kommt beim 24 Zoll Modell UP2414Q auch eine andere Displaytechnik zum Einsatz. Während beim UltraSharp 32 Zoll UP3214Q ein IGZO-Display verbaut ist, muss sich der kleine Bruder mit einem Standard-LCD-Display zufrieden geben. Dies beeinflusst fast ausschließlich die Farbtiefe. Während das große Display 10 Bit Farbtiefe mit 1.074 Milliarden Farben darstellen kann, „erschleicht“ sich der 24 Zöller den Wert von 1.07 Milliarden Farben via 8 Bit Farbtiefe und einem Advanced Frame Rate Converter.

Werkseitig kalibriert – 99% Adobe RGB – 100% RGB

Ansonsten unterscheiden sich die technischen Daten der UHD Monitore kaum. Beide haben einen nativen Kontrast von 1000:1 (2.000.000:1 dynamisch) und eine Helligkeit von 350 cd/m2. 99% des Adobe RGB Farbraumes und 100% des sRGB Farbraumes werden abgedeckt. Die Monitore werden bereits werkseitig kalibriert ausgeliefert. Die Abweichung bei der Farbdarstellung sollte daher < 2 Delta E sein. Die 8ms Reaktionszeit des Panels zeigen klar, dass der Monitor für professionelle Video- und Bildbearbeitung konzipiert wurde, nicht für High-End Gaming.

Kein HDMI 2.0, dafür Displayport 1.2a mit 60hz

Für den Anschluss an einen PC/Mac stehen ein Mini DisplayPort (Adapter Mini DP zu Standard DP im Lieferumfang enthalten) ein DisplayPort 1.2a und ein HDMI-Anschluss bereit. Leider handelt es sich hierbei nicht um die neue HDMI 2.0 Version, somit ist eine Wiedergabe von maximal 30 Bildern pro Sekunde möglich. Der Displayport 1.2a unterstützt volle 60 Bilder pro Sekunde. Ein 4 Port USB 3.0 Hub, der via eines USB 3.0 Upstream an den PC angeschlossen wird, ermöglich den Anschluss der Peripherie direkt am Bildschirm. Ein 6 in 1 Media Card Lesegerät ist auf der linken Seite des Rahmens integriert.

Ob das europäische Modell ebenfalls über einen HDMI-Anschluss verfügt ist fraglich. Meist verzichten die Hersteller auf einen HDMI-Eingang um eine hohe Versteuerung zu umgehen.

Anzeige: 24 Zoll UP2414Q auf Amazon.de

[fusion_builder_container hundred_percent=“yes“ overflow=“visible“][fusion_builder_row][fusion_builder_column type=“1_1″ background_position=“left top“ background_color=““ border_size=““ border_color=““ border_style=“solid“ spacing=“yes“ background_image=““ background_repeat=“no-repeat“ padding=““ margin_top=“0px“ margin_bottom=“0px“ class=““ id=““ animation_type=““ animation_speed=“0.3″ animation_direction=“left“ hide_on_mobile=“no“ center_content=“no“ min_height=“none“]

Keine Produkte gefunden.

Dell P2815Q 4K Monitor mit 28 ZOllDell P2815Q 28 Zoll für unter 1.000 Dollar im Frühjahr 2014

Sharp möchte auch in der nahen Zukunft ein drittes Modell P2815Q in den Handel bringen. Dieses Modell soll lt. Dell der „bei Release günstigste Ultra HD Monitor auf dem Markt werden“. Der 28 Zöller soll unter 1.000 Dollar (ca. 730 Euro) kosten und im Frühjahr 2014 in den Handel kommen. Dell hat uns bereits ein erstes Bild des 28 Zöllers zur Verfügung gestellt. Viel Unterschied zu den anderen Größen ist nicht zu erkennen. Das einfache und funktionale Design zieht sich durch die komplette Serie.

Der Dell UltraSharp 32 ist weltweit für 3.499 Dollar US (ca. 2.580 Euro) verfügbar. Der kleinere Dell UltraSharp 24 ist aktuell nur in Nord- und Südamerika verfügbar und wird erst ab 16. Dezember weltweit für 1.399 Dollar (ca. 1.030 Euro) in den Läden stehen. Der deutsche Dell-Onlineshop listet noch keine der beiden Modelle.

Anzeige: 32 Zoll UP3214Q auf Amazon.de

[/fusion_builder_column][fusion_builder_column type=“1_1″ background_position=“left top“ background_color=““ border_size=““ border_color=““ border_style=“solid“ spacing=“yes“ background_image=““ background_repeat=“no-repeat“ padding=““ margin_top=“0px“ margin_bottom=“0px“ class=““ id=““ animation_type=““ animation_speed=“0.3″ animation_direction=“left“ hide_on_mobile=“no“ center_content=“no“ min_height=“none“]

Technische Daten des UP2414Q und UP3214Q:

[/fusion_builder_column][fusion_builder_column type=“1_1″ background_position=“left top“ background_color=““ border_size=““ border_color=““ border_style=“solid“ spacing=“yes“ background_image=““ background_repeat=“no-repeat“ padding=““ margin_top=“0px“ margin_bottom=“0px“ class=““ id=““ animation_type=““ animation_speed=“0.3″ animation_direction=“left“ hide_on_mobile=“no“ center_content=“no“ min_height=“none“][fusion_old_tabs tab1=“Dell UltraSharp 32 UP3214Q“ tab2=“Dell UltraSharp 24 UP2414Q“  layout=“horizontal“ backgroundcolor=““ inactivecolor=““]
[fusion_old_tab id=1] [fusion_builder_row_inner][fusion_builder_column_inner type=“1_2″ last=“no“]

Display:

Diagonale sichtbare Größe:
80.1 cm
31.5″ (31.5 zoll sichtbarer Bereich)
Seitenverhältnis
Widescreen (16:9)
Panel – Paneloberfläche
IGZO LCD, In-plane switching, entspiegelt mit Hartbeschichtung 3H
Optimale Auflösung:
3840 x 21601 mit 60 Hz (DP1.2*)
3840 x 21601 mit 30Hz HDMI
Kontrast:
1000: 1 (nativ)
2 Million:1 (Maximal) (dynamischer Kontrast)
Helligkeit:
350 cd/m2
Bildreaktionszeit
8 ms (grau zu grau)
Blickwinkel:
(176° vertikal / 176° horizontal)
Farbunterstützung
Color Gamut (typical): Adobe RGB 99%, sRGB 100%
1.074 Millarde Farben (10 Bits)
Pixelabstand:
0.182 mm
Pixel per Inch (ppi)
140
Displaybeleuchtung:
LED

Anschlüsse:

1 HDMI Anschluss
1 Mini DisplayPort
1 DisplayPort (version 1.2a)
4 USB 3.0 Anschluss – Downstream (4 auf der Rückseite, 1 mit Akkuaufladung)
1 USB 3.0 Anschluss – Upstream
1 Media Card Reader

Ständer:

Höhenverstellbar, Neigen und Schwenken, eingebautes Kabel-Management.
Montage-Interface:
VESA (100 mm)
[/fusion_builder_column_inner]

[fusion_builder_column_inner type=“1_2″ last=“yes“]

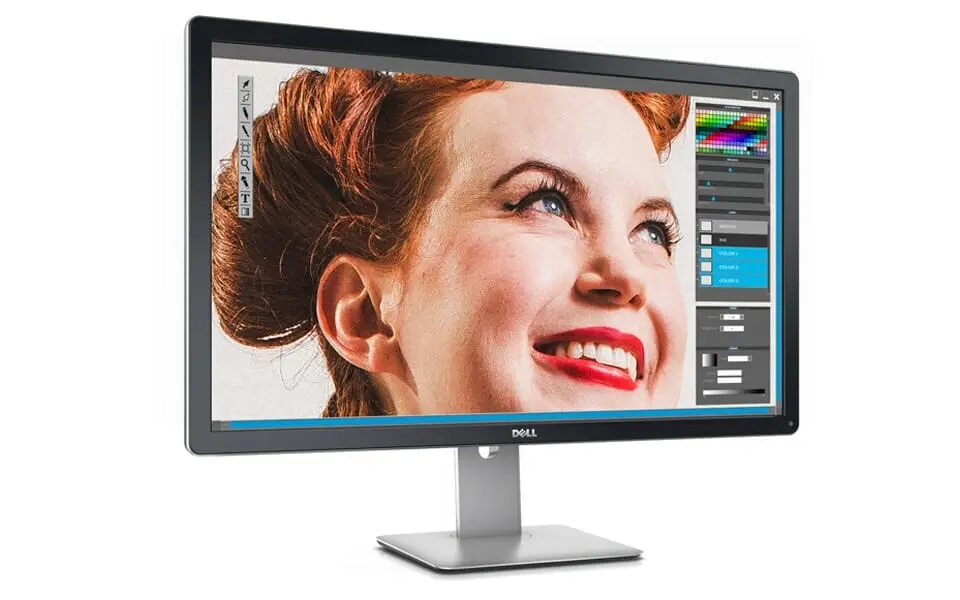

Abbildung:

Dell UP3214Q 4K Monitor

Maße und Gewicht:

Größe mit Ständer (H x B x T):
19.0″ ~22.5″ (482.6 mm ~ 572.4 mm) x 29.5″ (749.9 mm) x 8.4″ (214.0 mm)
Größe ohne Ständer (H x B x T):
17.5″ (444.6 mm) x 29.5″ (749.9 mm) x 2.0″ (51.5 mm)
Display-Größe (H x B):
697.9 mm x 392.6 mm
27.5″ x 15.5″
Gewicht (nur Panel mit Vesa-Mount):
9.22 kg (20.33 lbs)
Gewicht mit Verpackung:
16.05 kg (35.38 lbs)

Strom / Stromverbrauch:

Spannung:
100 to 240 VAC / 50 or 60 Hz ± 3Hz / 1.8 A (typical)
Stromverbrauch im Betrieb:
100 (Durchschnitt) / 170W (Maximum)
Stromverbrauch im Sleep-Modus:
Weniger als 1.2W

Lieferumfang:

Monitor mit Ständer
Abdeckung für Kabelschacht
Stromkabel
DP Adapter (Mini-DP zu DP)
USB 3.0 upstream Kabel (aktiviert den USB-Hub am Monitor)
Treiber und Bedienungsanleitung
Quick Setup Anleitung
Sicherheitsinformationen
Kalibrierungsbericht (vom Werk)
[/fusion_builder_column_inner][/fusion_builder_row_inner]
[/fusion_old_tab] [fusion_old_tab id=2]
[fusion_builder_row_inner][fusion_builder_column_inner type=“1_2″ last=“no“]

Display:

Diagonale sichtbare Größe:
60.47 cm
23.8″ (23.8 zoll sichtbarer Bereich)
Seitenverhältnis
Widescreen (16:9)
Panel – Paneloberfläche
LCD, In-plane switching, entspiegelt mit Hartbeschichtung 3H
Optimale Auflösung:
3840 x 21601 mit 60 Hz (DP1.2*)
3840 x 21601 mit 30Hz HDMI
Kontrast:
1000: 1 (nativ)
2 Million:1 (Maximal) (dynamischer Kontrast)
Helligkeit:
350 cd/m2
Bildreaktionszeit
8 ms (grau zu grau)
Blickwinkel:
(178° vertikal / 178° horizontal)
Farbunterstützung
Color Gamut (typical): Adobe RGB 99%, sRGB 100%
1.07 Millarde Farben (8 Bit + AFRC)
Pixelabstand:
0.137 mm
Pixel per Inch (ppi):
185
Displaybeleuchtung:
LED

Anschlüsse:

1 HDMI Anschluss
1 Mini DisplayPort
1 DisplayPort (version 1.2a)
4 USB 3.0 Anschluss – Downstream (4 auf der Rückseite, 1 mit Akkuaufladung)
1 USB 3.0 Anschluss – Upstream
1 Media Card Reader

Ständer:

Höhenverstellbar, Neigen und Schwenken, eingebautes Kabel-Management.
Montage-Interface:
VESA (100 mm)
[/fusion_builder_column_inner]

[fusion_builder_column_inner type=“1_2″ last=“yes“]

Abbildung:

Dell UP2414Q 4K Monitor

Maße und Gewicht:

Größe mit Ständer (H x B x T):
14.61″ ~ 19.75″ (371.1 mm ~ 501.7 mm) x 22.40″ (569.0 mm) x 7.56″ (192.0 mm)
Größe ohne Ständer (H x B x T):
13.33″ (338.5 mm) x 22.40″ (569.0 mm) x 2.22″ (56.3 mm)
Display-Größe (H x B):
527.04 mm x 296.46 mm
20.7″ x 11.7″
Gewicht (nur Panel mit Vesa-Mount):
4.8 kg (10.58 lbs)
Gewicht mit Verpackung:
10.0 kg (22.05 lbs)

Strom / Stromverbrauch:

Spannung:
100 to 240 VAC / 50 or 60 Hz ± 3Hz / 2.1 A (typical)
Stromverbrauch im Betrieb:
90 (Durchschnitt) / 120W (Maximum)
Stromverbrauch im Sleep-Modus:
Weniger als 1.2W

Lieferumfang:

Monitor mit Ständer
Abdeckung für Kabelschacht
Stromkabel
DP Adapter (Mini-DP zu DP)
USB 3.0 upstream Kabel (aktiviert den USB-Hub am Monitor)
Treiber und Bedienungsanleitung
Quick Setup Anleitung
Sicherheitsinformationen
Kalibrierungsbericht (vom Werk)
[/fusion_builder_column_inner][/fusion_builder_row_inner]
[/fusion_old_tab] [/fusion_old_tabs] [/fusion_builder_column][fusion_builder_column type=“1_1″ background_position=“left top“ background_color=““ border_size=““ border_color=““ border_style=“solid“ spacing=“yes“ background_image=““ background_repeat=“no-repeat“ padding=““ margin_top=“0px“ margin_bottom=“0px“ class=““ id=““ animation_type=““ animation_speed=“0.3″ animation_direction=“left“ hide_on_mobile=“no“ center_content=“no“ min_height=“none“][fusion_accordion][fusion_toggle title=“Pressemitteilung aufklappen“ open=“no“]

ROUND ROCK, Texas, Dec. 2, 2013 – Dell today introduced the industry’s most complete portfolio of Ultra HD Monitors designed to meet a wide range of professional and consumer demands. Dell Ultra HD Monitors deliver stunning screen clarity and detail with four times the resolution of Full HD. From sophisticated power users such as video editors, CGI animators and game developers, through consumers seeking incredible onscreen clarity for entertainment applications, Dell has an Ultra HD monitor to meet the visual demands of even the most detail-oriented people.

High-performance Ultra HD Monitors for Design Professionals:  Dell UltraSharp 32 Ultra HD Monitor and Dell UltraSharp 24 Ultra HD Monitor

Featuring Dell PremierColor, Dell UltraSharp Ultra HD Monitors deliver accurate, precise color at virtually full spectrum coverage, and include support of major color industry standards including 99 percent AdobeRGB – the highest level in the industry – and the ability to precisely calibrate to the palettes users need for custom color work. The flagship Dell UltraSharp 32 Ultra HD Monitor delivers stunning screen clarity and detail with Ultra HD 3840 x 2160 resolution and high pixel density on an expansive 31.5-inch screen. Dell’s largest monitor allows for easy multi-tasking and viewing multiple applications side by side, and its ultra-wide 176-degree viewing angle ensures that images and colors remain consistent regardless of the perspective. Designed for graphic designers, video and game developers, CAD/CAM designers, engineers, photographers and other power users, the Dell UltraSharp 32 Ultra HD Monitor provides an exceptional, high performance viewing experience.

With the same remarkable, pin-point clarity, the Dell UltraSharp 24 Ultra HD Monitor, users can enjoy color consistency and precision from virtually any angle thanks to an ultra-wide 178-degree viewing angle on a 28.3-inch screen. The UltraSharp 24 Ultra HD Monitor allows customers to see more and do more with uncompromising picture quality that facilitates multi-tasking on a screen that delivers four times more data than a Full HD monitor.

Coming Soon: Dell 28 Ultra HD Monitor– Expected to be The Industry’s Most Affordable Ultra HD Monitor

The Dell 28 Ultra HD Monitor will be available in early 2014. Offering the same incredible Ultra HD screen performance as the Dell UltraSharp 32 and Dell UltraSharp 24 Ultra HD Monitors, but priced at under $1,000, this 28-inch monitor can help boost user productivity with its multiple adjustability features, including the ability to pivot to portrait mode, plus multi-task applications. The energy efficient monitor has multiple input ports that allow users to display content from smartphones and tablets on the larger screen, and conveniently connect laptops, PCs and essential accessories. Dell expects this monitor will be the most affordable Ultra HD monitor in the industry when it is launched.

Customers also can rely on Dell’s industry-leading service and warranty coverage. All Dell Ultra HD monitors carry the Dell Premium Panel Guarantee, which means that if a user notices a single “bright” pixel during the warranty period, Dell will replace the panel.

“We are excited to announce Ultra High Definition monitors in sizes and price points that will be compelling to customers seeking higher resolution,” said Bert Park, vice president and general manager, Displays and Client Peripherals, Dell. “Today’s announcement reinforces how Dell has led in product innovation by making the latest monitor technologies available to everyone, regardless of their usage or budget.”

Availability and Pricing

The Dell UltraSharp 32 Ultra HD Monitor (UP3214Q) is available globally starting at $3,499. The Dell UltraSharp 24 Ultra HD Monitor (UP2414Q) is now available in the Americas, starting at $1,399. It will be available worldwide on December 16. The UltraSharp 28 Ultra HD Monitor (P2815Q) will be available in early 2014.

[/fusion_toggle][/fusion_accordion]

Via: anandtech.com & Dell.com
